Start with Reef-pi

[mapama]

Hello,
Sorry for my English.
I am redoing my Amazonian aquarium of 1000 liters. And I intend to use reef-pi.

I started assembling everything and I have two questions:

1- I control my leds with a PCA9685. I hooked it up to a 48v power supply. I can't dim the lights. They are always 100%

led hosted at ImgBB

Image led hosted on ImgBB

ibb.co

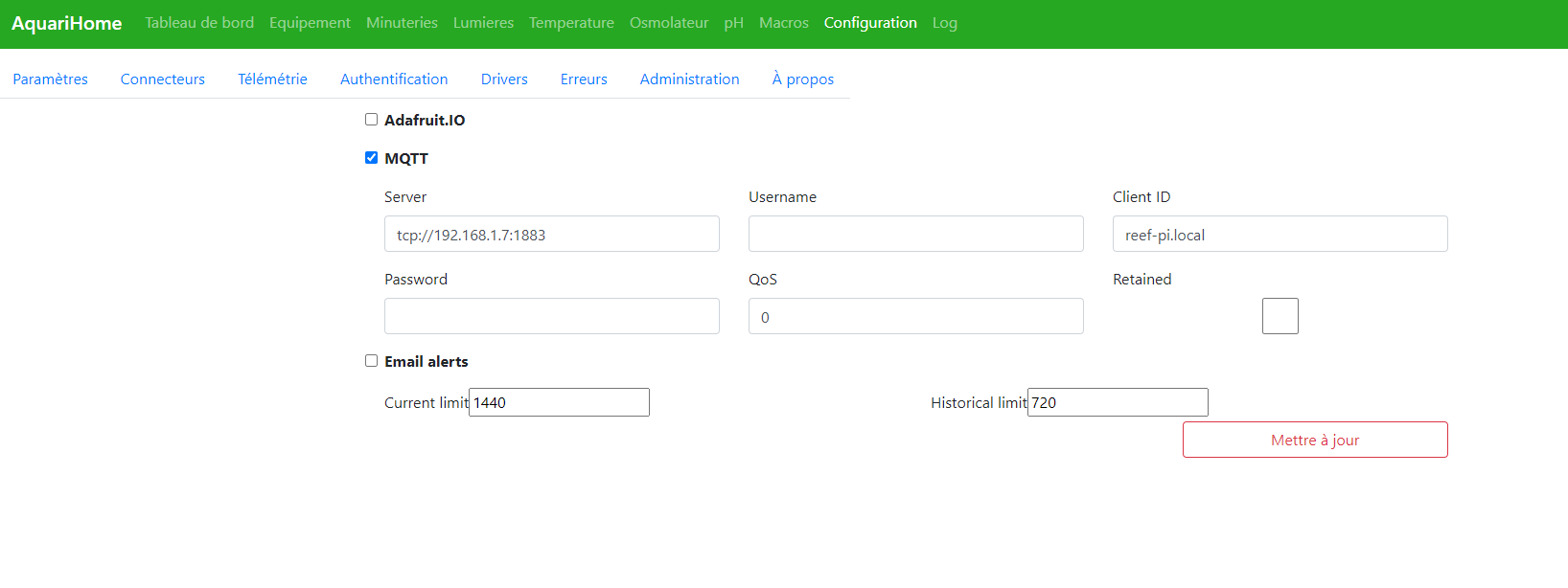

2- For MQTT, my reef-pi is at IP 192.168.1.29, and my mqtt server is at 192.168.1.7. Is the configuration page correct like this?

MQTT hosted at ImgBB

Image MQTT hosted on ImgBB

ibb.co

Start with reef-pi



[mapama]

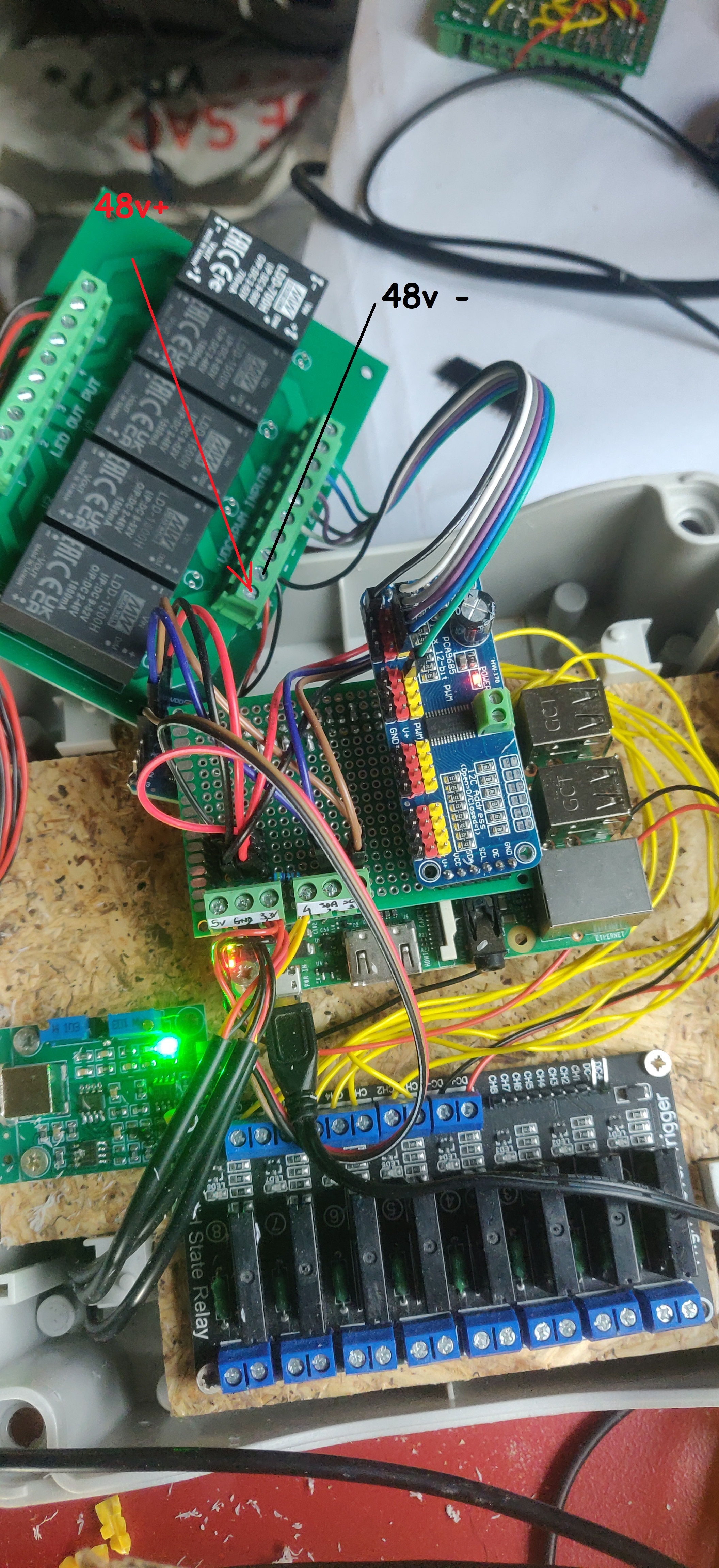

my configuration with more details :

If you have any idea to help me...



[mapama]

between PWM and GND i have only 1v max. what could i have missed ?



[theatrus]

If the PWM is working and you set it to about 1/3rd, you'd see 1V on a 3.3V system when using an averge volt meter



[mapama]

does the frequency matter?
The measurement must be taken between gnd and pwm? between black and yellow?
thanks for the help



[mapama]

it was my pca9685 not working. it seems to work fine now with the new one.



[mapama]

another question :
Is it possible to enable and disable a light (manual:0 or auto) via API or MQTT ?



[Ranjib]

another question :
Is it possible to enable and disable a light (manual:0 or auto) via API or MQTT ?

Via api yes, not via mqtt



[mapama]

ok thank you, I will try.
Congratulations for your work



[Ranjib]

thank you
