Calcium reactor
- Thread starter Yanos
- Start date
- Tagged users None
joseserrano
2500 Club Member
You would probably control the regulator on/off with that data
I don't think I would use the KHD, I would control a Calcium reactor from an additional PH probe on your Profilux. I was going to go this route but went a different way instead.

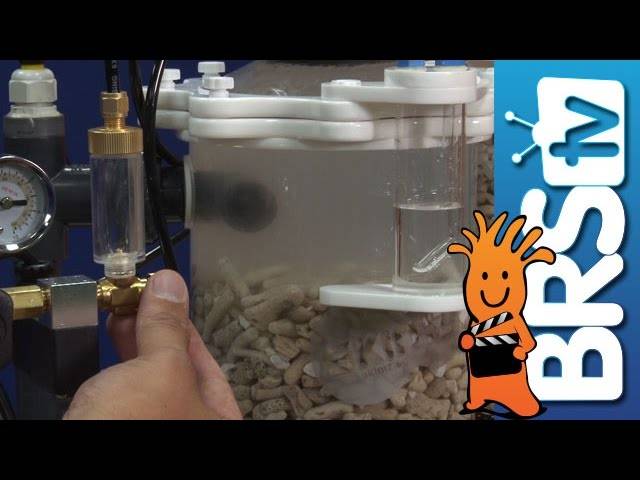

Set-up and Tune a Calcium Reactor | How To Tuesday
In this episode of BRStv we show you how to set-up and tune a calcium reactor using the Skimz CM152. Calcium reactors are really popular with advanced reefers because they are capable of adding large volumes of calcium and alkalinity, they also dose trace elements, they have no effect on...
www.bulkreefsupply.com
How it works: Calcium reactors explained the easy way - Reef FAQs
At first glance, a calcium reactor can be a bit intimidating with a seemingly complex network of tubes and conflicting advice all over the internet. Explained the easy way, a calcium reactor is simply a device that is dosing calcium and alkalinity to your reef tank via a single concentrated...
www.bulkreefsupply.com
How to change from 2 part dosing to a Calcium Reactor? - BRStv ReefFAQs
How do you change your reef tank over to a calcium reactor from 2 part? ReefFAQs not only has an answer for how to replace 2 part dosing with a calcium reactor, we even found an easy calculator to help you setup a calcium reactor on your saltwater tank! #ReefFAQs Check Out Jdieck's Calcium...
www.bulkreefsupply.com
The Easy Way To Setup a Calcium Reactor For Your Reef Aquarium - Reef FAQs
Learn how to easily set up a calcium reactor using a pH controller and adjustable continuous duty dosing pump.
www.bulkreefsupply.com
- Joined
- Jul 27, 2016
- Messages
- 1,201
- Reaction score
- 1,545
Controlling a Calcium Reactor with a KHD is available only when you have a ProfiLux 4 controller. We have explanations of the control options on our KHD manual, see page 39 and 40.
www.aquariumcomputer.com
KH Director manual - GHL Advanced Technology
Attachments KH-Director_Manual_V100_EN_2019-10-24 (2 MB)
www.aquariumcomputer.com
zoomonster
Valuable Member
I'm a little curious about whats trying to be accomplished here and "KH control". Usually controlling a Ca reactor is about maintaining a PH range inside the reactor for controlled dissolution of media. I use a PH probe on Apex to turn on/off the CO2 solenoid to maintain a PH range in the reactor. As far as effluent out of the reactor that's just a controllable drip. Different controller same concept.
bubblemytip
Active Member
Would work as a failsafe. Main control would still be effected through pH, but if KH spiked, then the P4 can stop the addition of CO2 or increase the pH setpoint for the reactor automatically, or if the KH is low, then it can adjust the pH of the reactor to go lower and deliver more KH for whatever effluent rate the reactor is fixed to deliver. The KHD allows maximum limits to be set for the increase/decrease in reactor pH to avoid melting/turning to sludge whatever brand of media you happen to be using. It is all explained quite clearly in the manual at the pages referenced by Vinny above.
Gribbliest
Active Member
- Joined
- Nov 13, 2017
- Messages
- 219
- Reaction score
- 283
Just need my CalRx already.......
I have everything else I need. Come on GeosReef!!!!!!!
I have everything else I need. Come on GeosReef!!!!!!!
- Joined
- Jul 27, 2016
- Messages
- 1,201
- Reaction score
- 1,545
With a ProfiLux and KHD, the ProfiLux is the primary means of Calcium Reactor control and KHD is your fine-tuned control.
1. Go to pH probe settings page, set desired pH level
2. Go to switch channels settings page, select the outlet that has the CO2 connected to it, set the function to pH control downwards. Save settings. ProfiLux will now handle primary Calcium Reactor control.
3. Go KHD settings page, set mode to Calcium Reactor, select pH probe being used for calcium reactor
4. Set Nominal value change to a number which tells the controller by how much to increase/decrease the set pH probe's nominal value (Step 1) if the KH test result is +/- 1dkH away from the desired value. If the test results is less than +/- 1 away from the desired value, the extent of the change will be calculated automatically.
5. Set upper and lower limits.
1. Go to pH probe settings page, set desired pH level
2. Go to switch channels settings page, select the outlet that has the CO2 connected to it, set the function to pH control downwards. Save settings. ProfiLux will now handle primary Calcium Reactor control.
3. Go KHD settings page, set mode to Calcium Reactor, select pH probe being used for calcium reactor
4. Set Nominal value change to a number which tells the controller by how much to increase/decrease the set pH probe's nominal value (Step 1) if the KH test result is +/- 1dkH away from the desired value. If the test results is less than +/- 1 away from the desired value, the extent of the change will be calculated automatically.
5. Set upper and lower limits.
blfuller123
375 Mixed Reef
I have a separate PH controller for my CR. The PH controller sets the PH in the reactor to to 6.9 (Not GHL controlled) but could if I had another GHL PH probe. I have that PH controller plug plugged into my power bar and that socket (GHL controlled) is on as long as dkh below 8.3 and the tank PH is above 7.8. If my dkh goes above 8.3 or the tank ph drops below 7.8 the the socket turns off shutting co2 off.
