What do you guys think about this monitor? does it work well ?
Co2 Monitor
- Thread starter Tuan’s Reef
- Start date
- Tagged users None
OP
OP
Tuan’s Reef
2500 Club Member
- Joined
- Dec 27, 2018
- Messages
- 3,827
- Reaction score
- 3,762
- What state or country do you live in
- North Dakota
just trying to get a sense of my ambient Co2 . Is there such a monitor that will connect to my Apex?
Sean Clark
7500 Club Member
Yes but you will need an ASM module which is packaged with the PMK bundle. If you ask Neptune directly they have been reported to sell the ASM separately. Then any device that outputs a 0-1 or 1-5v signal can be directly interfaced and displayed in Fusion. I used this one for a while:

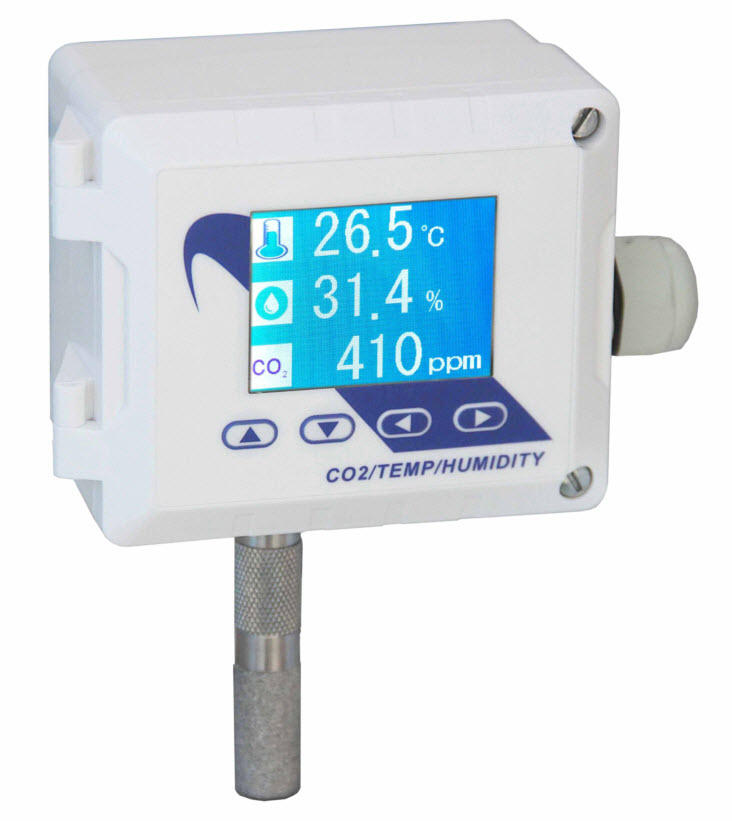

CO2 Sensor
The CO2 sensor with Humidity & Temp transmitters are designed for environmental monitoring and controlling in industrial, commercial and other buildings. These transmitters can be used for indoor C02, temperature and humidity monitoring. The modbus interface provides easy setup and integration...
bravocontrols.com
Clownfishy
Well-Known Member
- Joined
- Aug 17, 2017
- Messages
- 752
- Reaction score
- 363
- Location
- UK
- What state or country do you live in
- Other International
When you connect it to the ASM model does Fusion automatically add a tile with a graph (like the pH and ORP graphs)?Yes but you will need an ASM module which is packaged with the PMK bundle. If you ask Neptune directly they have been reported to sell the ASM separately. Then any device that outputs a 0-1 or 1-5v signal can be directly interfaced and displayed in Fusion. I used this one for a while:
CO2 Sensor
The CO2 sensor with Humidity & Temp transmitters are designed for environmental monitoring and controlling in industrial, commercial and other buildings. These transmitters can be used for indoor C02, temperature and humidity monitoring. The modbus interface provides easy setup and integration...
OP
OP
Tuan’s Reef
2500 Club Member
- Joined
- Dec 27, 2018
- Messages
- 3,827
- Reaction score
- 3,762
- What state or country do you live in
- North Dakota
Yes but you will need an ASM module which is packaged with the PMK bundle. If you ask Neptune directly they have been reported to sell the ASM separately. Then any device that outputs a 0-1 or 1-5v signal can be directly interfaced and displayed in Fusion. I used this one for a while:
CO2 Sensor
The CO2 sensor with Humidity & Temp transmitters are designed for environmental monitoring and controlling in industrial, commercial and other buildings. These transmitters can be used for indoor C02, temperature and humidity monitoring. The modbus interface provides easy setup and integration...
about to pull the trigger on one of these Co2 sensors , but i need the ASM module. I'll send an email to Neptune and see if they will sell just the ASM module. I would get their PMK kit but the apogee 210 sucks, and who wants to wait 1 minute to get par readings on Apex?
Sean Clark
7500 Club Member
Yes it will chart the data onto a graph just like the other inputs. This a screenshot from when I was testing this. I let it "settle in" for a few days, 1236 is quite high, I had to adjust the curve to get it to match the display. Because of the analog conversion there is a small deviation from the display on the meter, but always very close.
You will need a power supply and a BNC cable for the co2 sensor as well. It is an industrial type product so they expect you to hook those up yourself. it is super easy. You can cut the cable off of an old pH probe if you have one laying around.
Saltyanimals
Valuable Member
- Joined
- Jun 4, 2016
- Messages
- 1,010
- Reaction score
- 462
Any feedback on the quality or accuracy of that bravocontrol one ?Yes but you will need an ASM module which is packaged with the PMK bundle. If you ask Neptune directly they have been reported to sell the ASM separately. Then any device that outputs a 0-1 or 1-5v signal can be directly interfaced and displayed in Fusion. I used this one for a while:
CO2 Sensor
The CO2 sensor with Humidity & Temp transmitters are designed for environmental monitoring and controlling in industrial, commercial and other buildings. These transmitters can be used for indoor C02, temperature and humidity monitoring. The modbus interface provides easy setup and integration...
