Hut's 200DD Build

Hut · Oct 3, 2015

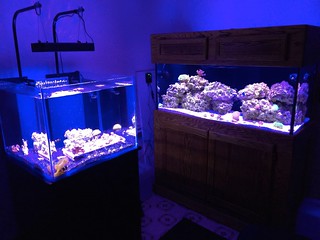

I posted this on my local club's forum, but there isn't much activity there. But anyways, I decided to upgrade from a 75g and 45g cube after being in the hobby for about 7 months.

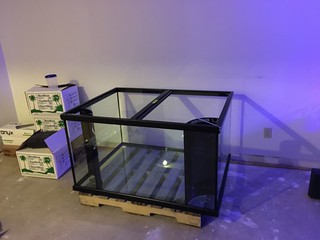

Both are still running, awaiting the big move. I ended up going with the 200 DD from Marineland to fit the area I had to work with. The dimensions are 48x36x27". I hope I'm not disappointed limiting myself with the width.

Below are some of the equipment choices I'm going to start off with.

Tank: Marineland 200g Deep Dimension (xFingers for no leaks)
Sump: Eshopps ADV-300
Skimmer: Super Reef Octopus 2000 XP
Circulation:
- Return: Jebao DC12000
- Internal: 2x VorTech MP40s
Controller: Neptune Systems Apex
Dosing: Neptune Systems DOS

The first step was to demo the basement and decide on the exact location to place the tank. I really had 2 locations that I thought would work and allow me to have a fish/utility room.

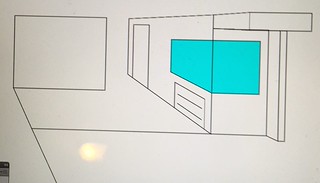

A:

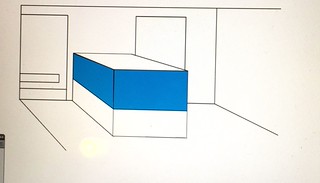

B:

After analyzing costs and obstacles, such as duct work and the furnace, I decided to go with B. I would have rather went w/A, but had better access to drains and water w/B.

Hut · Oct 3, 2015

Here is the stand build:

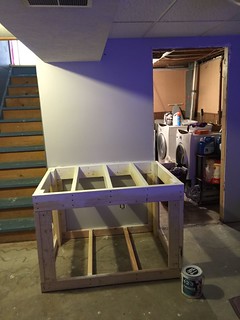

Frame

Test Fit

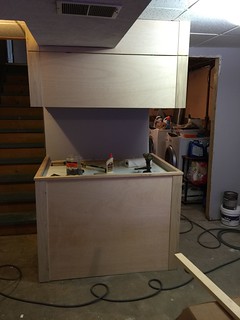

Framing the Canopy

Wiring up a new breaker and a few outlets

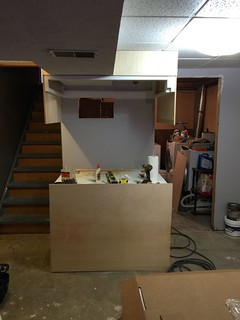

Some panels and holes.

View from the Stairs. One of the reasons I didn't want the stand here. But it isn't as bad as I thought it would be. It will give off a nice welcoming blue glow once it's running.

Finished up panels and a little trim.

Hut · Oct 3, 2015

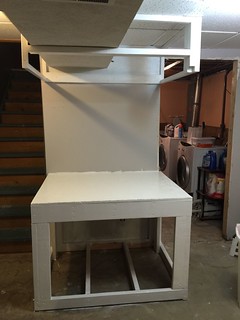

Stand painted. (not pictured: new carpet)

Plumbing also came in this week.

Stoube26 · Oct 3, 2015

Following

Hlmarlowe · Oct 16, 2015

Following

TheEngineer · Oct 16, 2015

Looks like a great project!

Where did you order the colored PVC from?

Hut · Nov 12, 2015

Thanks, it's taking a lot longer than I planned. Trying to find time has been the biggest obstacle.

I picked up the pvc from Bulk Reef Supply. I'll post some pics of the plumbing soon.

3l3ments · Nov 16, 2015

Defiantly following was going to do the 250dd myself but went with the 200DD. The tank should be in this Thursday.

Hut · Nov 16, 2015

Can't say plumbing is my favorite thing to do. Any suggestions/comments welcome.

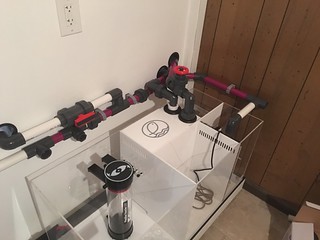

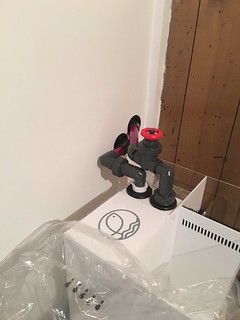

Here are a few photos of what I've done so far, using cheaper white pvc to mock up before i glue.

Still not completely set on placement of the return valve and how I want to do the minfold. Open ends on the left and right will have ball valves (left for water changes and right might go to a grow-out tank).
