RODI Question

Kdocimo90 · Dec 22, 2014

Long story short, I want to add a solenoid valve to my top off as a safety feature. My question is, being that most normally open solenoid valves seem to be stainless steel, will that be fine to use? Only freshwater will be passing through it. My concern is that it will be "reef safe"

svogun · Dec 22, 2014

Check out BRS. It has valves specifically designed for that.

Kdocimo90 · Dec 22, 2014

svogun said:
Check out BRS. It has valves specifically designed for that.

All I'm noticing are the Tunze ones? Is that what you're referring to?

svogun · Dec 22, 2014

The valve comes as part of a kit for auto shut off.

svogun · Dec 22, 2014

Look at the rodi accessories page.

Kdocimo90 · Dec 22, 2014

svogun said:
Look at the rodi accessories page.

could you link it?
All I'm noticing are ASO valves and pressure switches for booster pumps..

svogun · Dec 22, 2014

I might be confusing what you are looking for. Unfortunately I'm at work and can't link the page to you. I'm responding via phone. The solenoid you are looking for is separate from an ASO?

Kdocimo90 · Dec 22, 2014

svogun said:
I might be confusing what you are looking for. Unfortunately I'm at work and can't link the page to you. I'm responding via phone. The solenoid you are looking for is separate from an ASO?

Yes,

I'm looking for a Normally Open Solenoid Valve

svogun · Dec 22, 2014

Now I understand. Here is a link to what I think you need. McMaster-Carr The polycarb one likely will work/

Kdocimo90 · Dec 22, 2014

svogun said:
Now I understand. Here is a link to what I think you need. McMaster-Carr The polycarb one likely will work/

They are normally closed unfortunately.

svogun · Dec 22, 2014

There is a nylon one that is normally open with adjustable flow control. Its 113 bucks.

svogun · Dec 22, 2014

Good luck and post some pics of you find what you need. Would be interested in this feature as well for mine.

Kdocimo90 · Dec 22, 2014

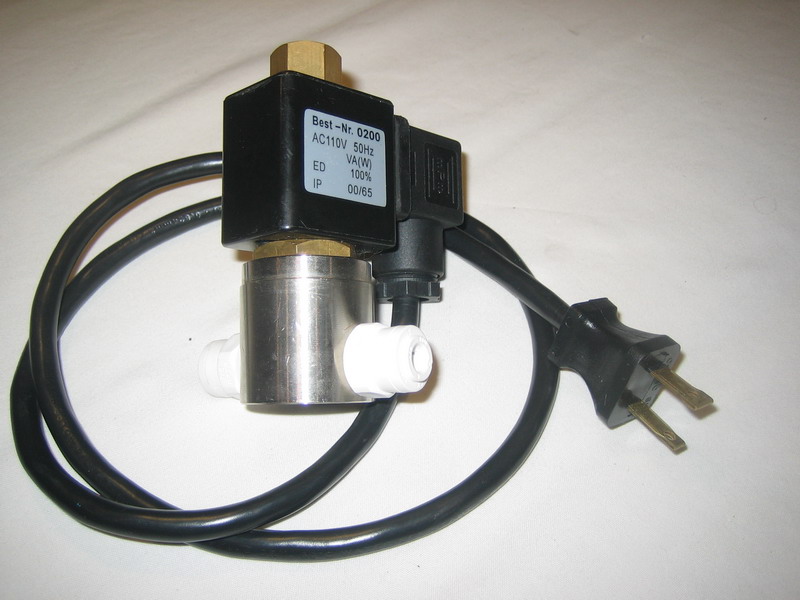

[TABLE="width: 800, align: center"]
[TR]
[TD="class: body, bgcolor: #7B958F, colspan: 4"][SIZE=+1]Normally Open Solenoid Valves[/SIZE][/TD]
[/TR]
[TR]
[TD="class: body"]

[/TD]
[TD="class: body, width: 480, bgcolor: #7B958F"][SIZE=+2]with 1/4" fittings and cord [/SIZE]
0-150 psi, 1/8" Ports, 0.098" orifice, 0.23 Cv value, stainless body w/ stainless parts, 3 foot power cord.[/TD]
[/TR]
[/TABLE]

VS

[TABLE="width: 330"]
[TR]
[TD][/TD]
[/TR]
[/TABLE]

WIC 2POG Series 1/2" Inch 2 Way Normally Open Plastic Pneumatic Electric Air, Gas, Water Zero Differential Solenoid Valve

WIC Valve 2POG Series 2-way normally open solenoid process valve is to control On/Off of air, inert gas, liquid, and vacuum. This solenoid valve has one 1/2" inlet and one 1/2" outlet port. Valve stays open when the coil is de-energized, and it closes when energized. Valve can be mounted in any position. WIC valves are compatible with ASCO valves.

2POG Series Solenoid Valve Specification:
Valve Type: 2 Way Normally Open (Valve closes with energized)
Service Media: Air, Gas, Liquid, Vacuum
Operation Model: Direct Lift Diaphragm
Body Material: PA Plastic Valve Body
Seal Material: NBR (Buna N) on Diaphragm and Plunger Tip
Coil Power: DC - 30W ; AC - 50/60Hz 28VA
Coil Class: H Class IP 65
Coil Duty: 100% ED (Continuous Duty)
Operating Pressure: Vacuum 0 PSI to 90 PSI
Operating Temperature: 0 to 50 Â°C
Port Size Option: 1/2", 3/4" and 1" NPT Female Port
Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC and 220V AC
Voltage Tolerances: DC: +10% â€“5% ; AC: +10% -15%
Electrical Connection: DIN 43650A Coil Connector with LED Indicator
